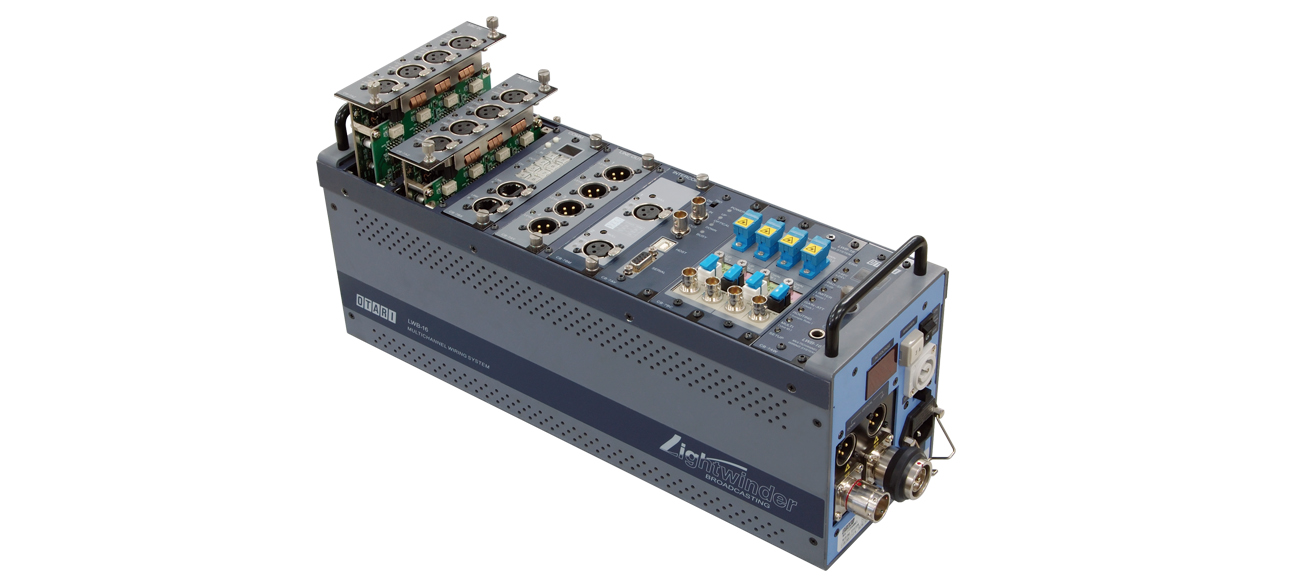

LWB-16M/64 Optical Wiring System
Front Connection | Rear Connection
Modules

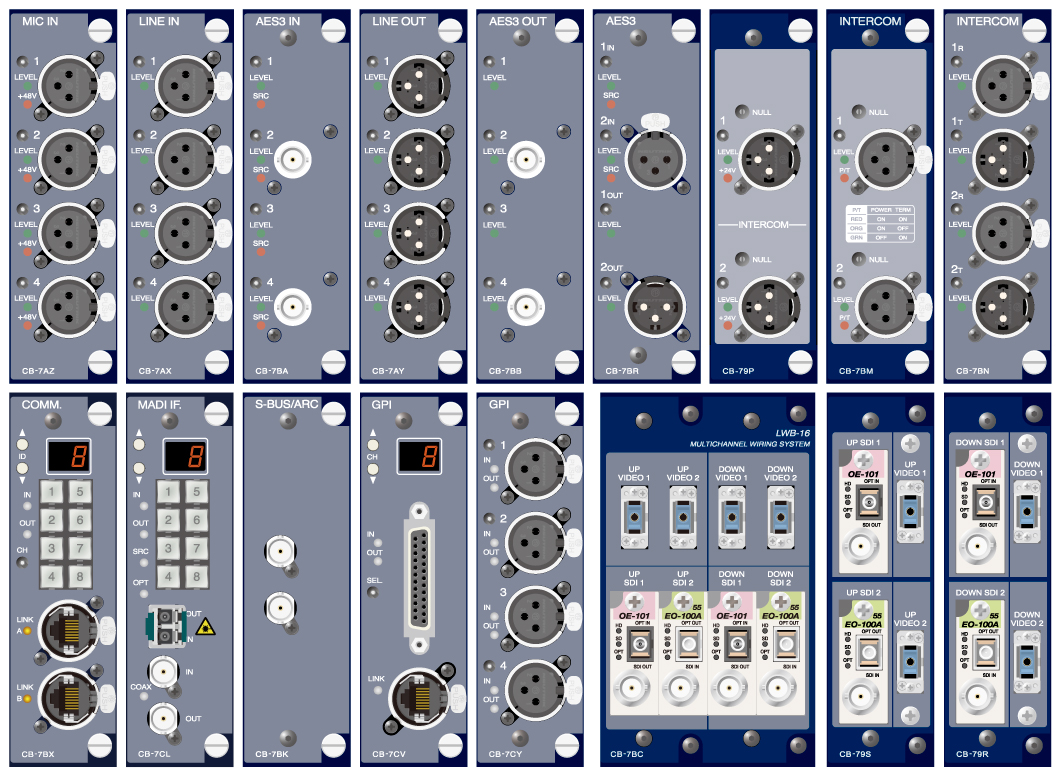

Front Connection Modules

Front connection type audio modules (including intercom modules) can be used on the LWB-16M, LWB-64, and ADS-72. Rear connection types are for LWB-64 and ADS-72.

MIC INCB-7AZ4-ch microphone input (4x XLR)
LINE INCB-7AX4-ch line input (4x XLR)
AES3id INCB-7BA4-ch AES3id input (2x BNC)
LINE OUTCB-7AY4-ch line output (4x XLR)
AES3id OUTCB-7BB4-ch AES3id output (2x BNC)
AES3 IN/OUTCB-7BR2-ch AES3 input/output (2x XLR)
2-WIRE INTERCOMCB-79P2-wire intercom,
single-channel support only (2x XLR)
2-WIRE INTERCOMCB-7BM2-wire intercom,
single-/dual-channel support (2x XLR)
4-WIRE INTERCOMCB-7BN4-wire intercom (4x XLR)
COMM.CB-7BXACommentary & communication (2x EtherCon®)
MADI IF.CB-7CLAMADI interface [multi mode] (2x OPT/BNC)
MADI IF.CB-7CLBMADI interface [single mode] (2x OPT/BNC)
SW REMOTE/ARCNET*CB-7BKSwitcher control signal/ARCNET signal (2x BNC)
GPICB-7CVGPIO (D-sub 25 + EtherCon®)
GPICB-7CYGPIO (4x XLR)
VIDEO*CB-7BCAVideo signal (2x OPT/BNC)
VIDEO UP**CB-79SAVideo signal (BNC)
VIDEO DOWN**CB-79RAVideo signal (BNC)

*) For LWB-16M only, **) For LWB-64 only
