LWB-16M/64 Optical Wiring System
1 | 2 | 3 | 4 | 5

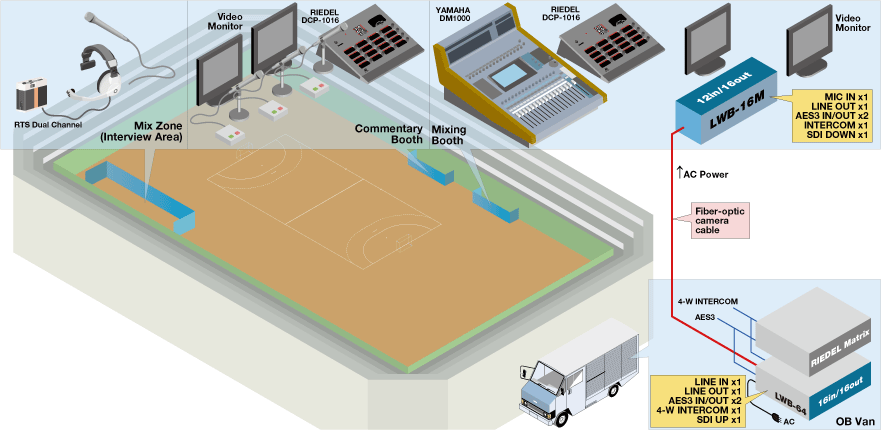

Application Example 1 - Broadcasting of Indoor Sports Event
Click image to enlarge.
  • This is an example of broadcasting indoor sporting events such as handball and figure-skating.
  • The LWB-16M is placed in the audio mixing booth inside the arena and is connected via a fiber-optic camera cable to the LWB-64 installed in the OB van parking outside the arena. The LWB-16M is powered from the LWB-64 via the camera cable.
  • Audio signals from the commentary booth and mix zone (interview area), intercom signals and monitor video signals are connected to the LWB-16M in the mixing booth. In this example, the AES3 IN/OUT modules are used to connect the RIEDEL intercom systems to the LWB.
