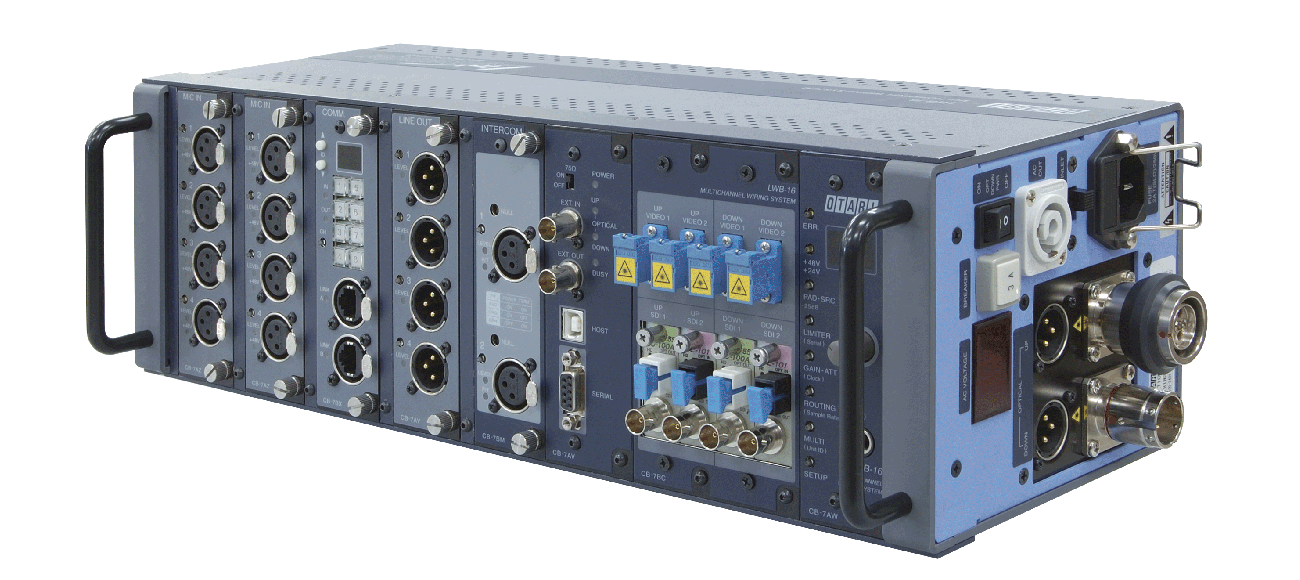

LWB-16M/64 Optical Wiring System
LWB-16M | LWB-64 | Common
LWB-16M/LWB-64 Specifications - LWB-16M
Number of audio channelsmax. 20
Number of audio input/output module slots5
Headphone output1x 1/4-inch stereo phone jack
Host connectionUSB
External clock2x BNC (IN/OUT)
Serial communication port1x D-sub 9-pin F
Power consumption1.0 to 0.4 A
Weight4.0 kg (excl. modules)
Dimensions (W x H x D)482 x 136 x 160 mm
(H = 132 mm, after removing front trim strips)

Specifications are subject to change without notice.
