LWB-16M/64 Optical Wiring System

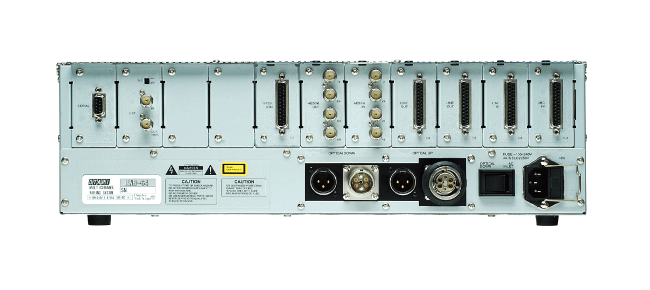

LWB-64

(With LEMO type receptacles and optional modules)

The Otari Lightwinder LWB-64 is a rack-mount type unit for OB van installation and can house up to 72 channels of audio inputs/outputs.
The most suitable I/O configuration for any application can be easily realized by just changing the modules inserted in the 9 slots.

For the LWB-64, the following audio I/O and control signal modules are available.

MIC IN	CB-79L	4-channel microphone input, rear connection type	D-sub 25F x 1
MIC IN	CB-7AZ	4-channel microphone input, front connection type	XLR x 4
LINE IN	CB-79J	8-channel line input, rear connection type	D-sub 25F x 1
LINE IN	CB-7AX	4-channel line input, front connection type	XLR x 4
AES3/3id IN	CB-79M	8-channel AES3/3id input, rear connection type	D-sub 25F x 1, BNC x 2
AES3id IN	CB-7BA	4-channel AES3id input, front connection type	BNC x 2
LINE OUT	CB-79K	8-channel line output, rear connection type	D-sub 25F x 1
LINE OUT	CB-7AY	4-channel line output, front connection type	XLR x 4
AES3/3id OUT	CB-79N	8-channel AES3/3id output, rear connection type	D-sub 25F x 1, BNC x 2
AES3id OUT	CB-7BB	4-channel AES3id output, front connection type	BNC x 2
AES3 IN/OUT	CB-7BS	4-channel AES3 input/output, rear connection type	D-sub 25F x 1, BNC x 2
AES3 IN/OUT	CB-7BR	2-channel AES3 input/output, front connection type	XLR x 2
2-WIRE INTERCOM	CB-7BM	2-wire intercom, Single/Dual channel supported, front connection type	XLR x 2
2-WIRE INTERCOM	CB-79P	2-wire intercom, Single channel support only, front connection type	XLR x 2
4-WIRE INTERCOM	CB-7BP	4-wire intercom, rear connection type	D-sub 25F x 1
4-WIRE INTERCOM	CB-7BN	4-wire intercom, front connection type	XLR x 4
SW REMOTE/ARCNET	CB-7BL	Switcher control signal/ARCNET signal, rear connection type	BNC x 2
