LWB-16M/64 Optical Wiring System

LWB-16M

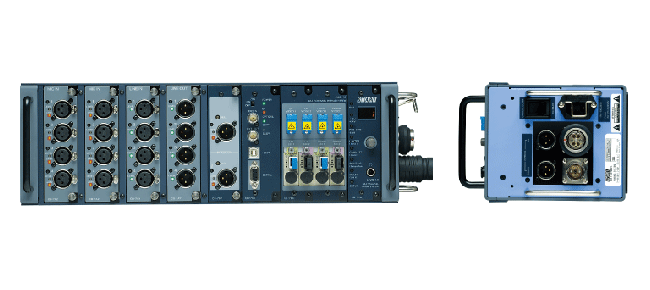

The Otari Lightwinder LWB-16M is a portable field unit that can have up to 20 channels of audio inputs/outputs.
The most suitable I/O configuration for any application can be easily realized by just changing the modules inserted in the 5 slots.

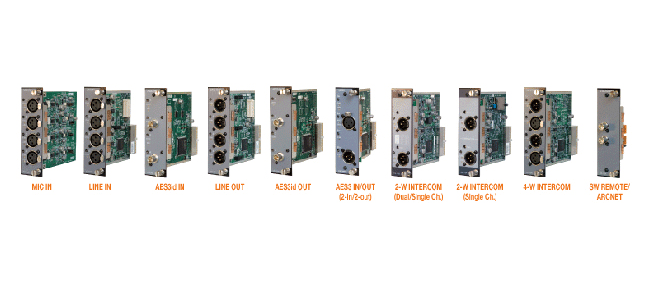

For the LWB-16M, the following audio I/O and control signal modules are available.

MIC IN	CB-7AZ	4-Channel Mic Input	XLR x 4
LINE IN	CB-7AX	4-Channel Line Input	XLR x 4
AES3id IN	CB-7BA	4-Channel AES3id Input	BNC x 2
LINE OUT	CB-7AY	4-Channel Line Output	XLR x 4
AES3id OUT	CB-7BB	4-Channel AES3id Output	BNC x 2
AES3 IN/OUT	CB-7BR	2-Channel AES3 I/O	XLR x 2
2-WIRE INTERCOM	CB-7BM	2-Wire Intercom, Single/Dual channel supported	XLR x 2
2-WIRE INTERCOM	CB-79P	2-Wire Intercom, Single channel support only	XLR x 2
4-WIRE INTERCOM	CB-7BN	4-Wire Intercom	XLR x 4
SW REMOTE/ ARCNET	CB-7BK	Switcher control signal/ARCNET signal	BNC x 2
