| LWB-16M/64 Optical Wiring System |

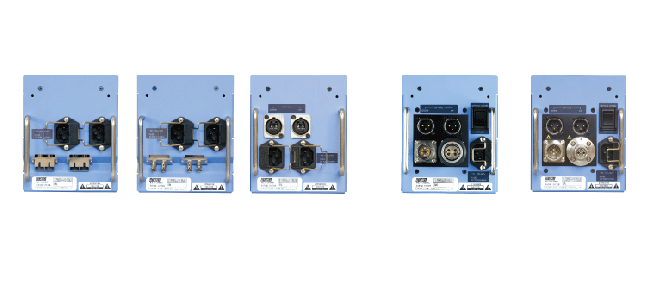

Customizing |  | In addition to selectable I/O module configurations, the LWB series can realize unique requirements.- Optical Fiber Cable Receptacles: The LWB units usually use LEMO or TAJIMI type hybrid fiber-optic camera cable receptacles for unit connection. However, SC or ST type connectors can be selected as a special order. In addition, you can also select Neutrik OpticalCon.
NOTE) With optical fiber cables other than hybrid fiber-optic camera cables, AC power transmission is no longer available. - Male/Female XLR Connector Selection: When ordering, you can specify male or female XLR connectors (receptacles).
- Video Cable Protector: Protective cover for video cable/patch cord.
- Voltmeter for AC Power Transmission: You can add an AC voltmeter to the rear panel (LWB-64) or side panel (LWB-16M) as a special order.
- AC Power Outlet: You can add an AC outlet to the rear panel (LWB-64) or side panel (LWB-16M) as a special order.
- Other Special Customizing: We may be able to answer your specific requirements. Please feel free to contact us!
|
|
