Various functions used during on-air are directly accessible on the following Operation Units. Simple user-interface provides secure operation.

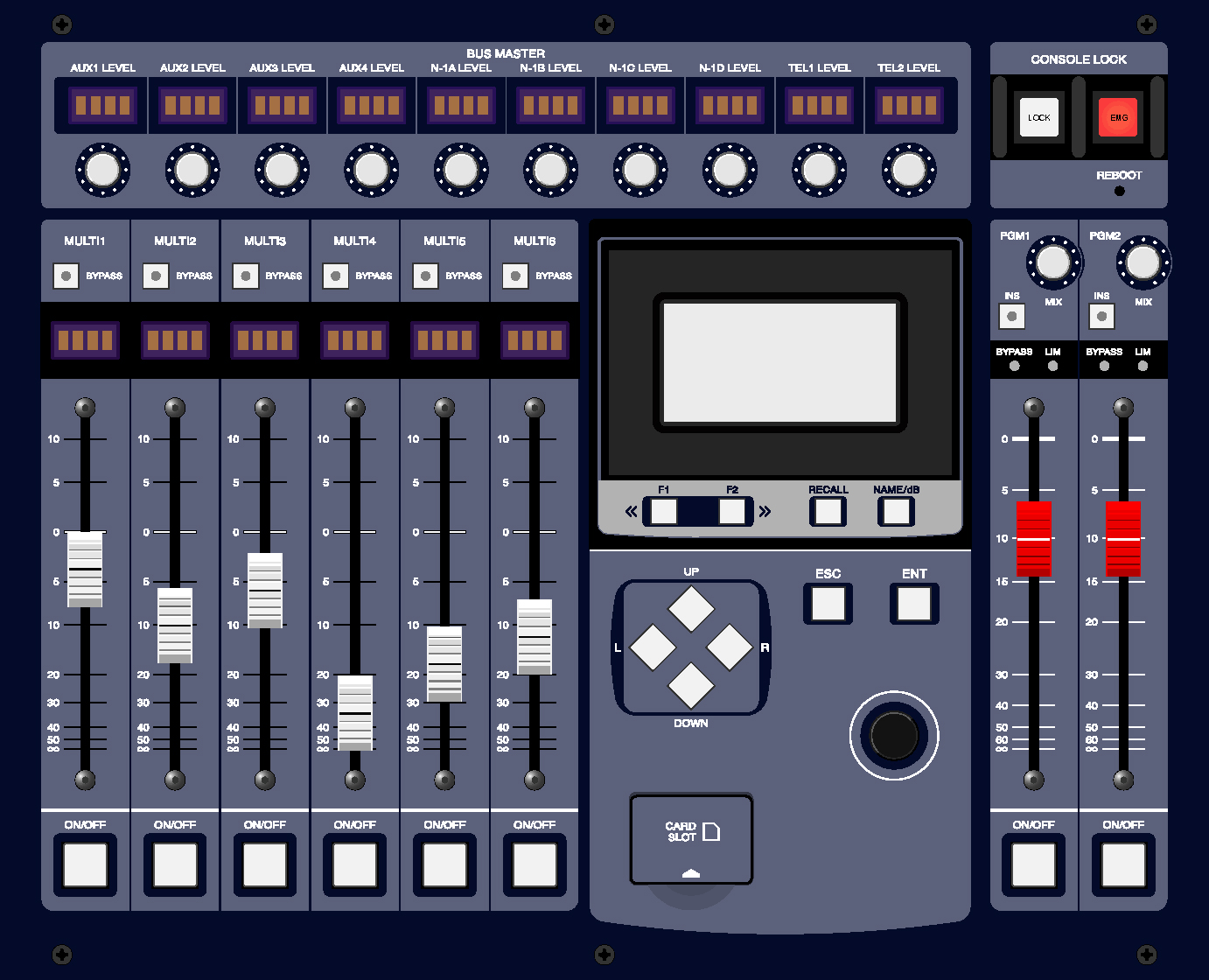

CB-2HR-- Master Unit
Menu operation and bus master control sections. The six MULTI faders can be used as group faders or bus master faders.

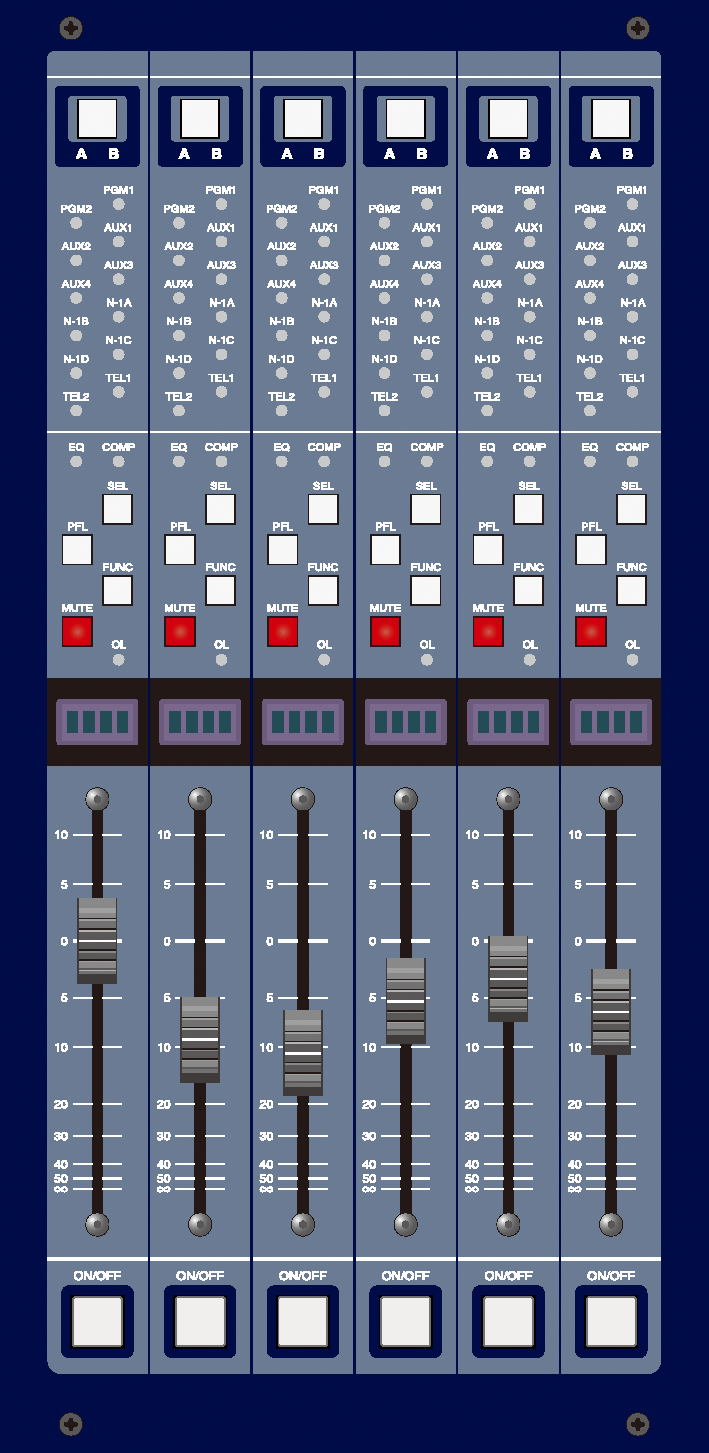

CB-2HV-- Input Unit
This unit has six input faders and allows A/B bank switching to have two settings for each channel strip. Channel status is shown by various indicators. Up to 4 Input Units can be connected to the console system.

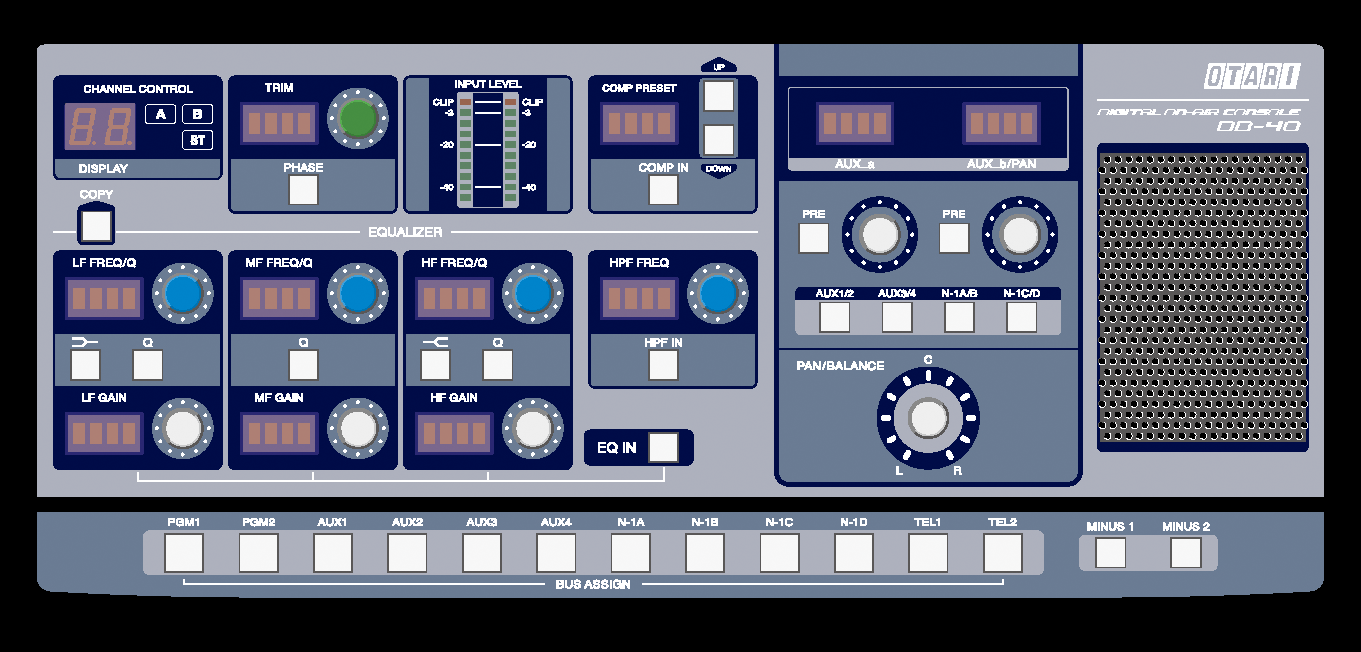

CB-2HT-- Channel Control Unit
The functions of the channel strip selected with the SEL key on the Input Unit appear on this unit.
This unit is used to control equalizer, compressor, and bus assignment operations.

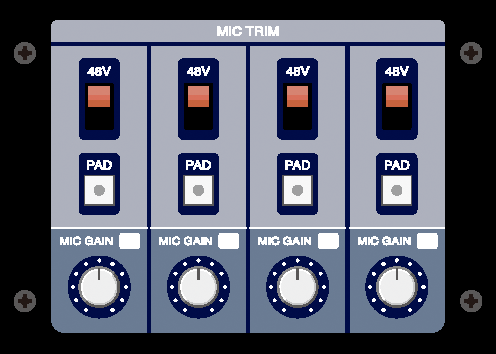

CB-2HU-- Mic Gain Unit
Used to control the preamplifiers in the MIC IN module. Provides phantom power/pad/gain adjustments. Up to 6 Mic Gain Units can be connected to the console system.

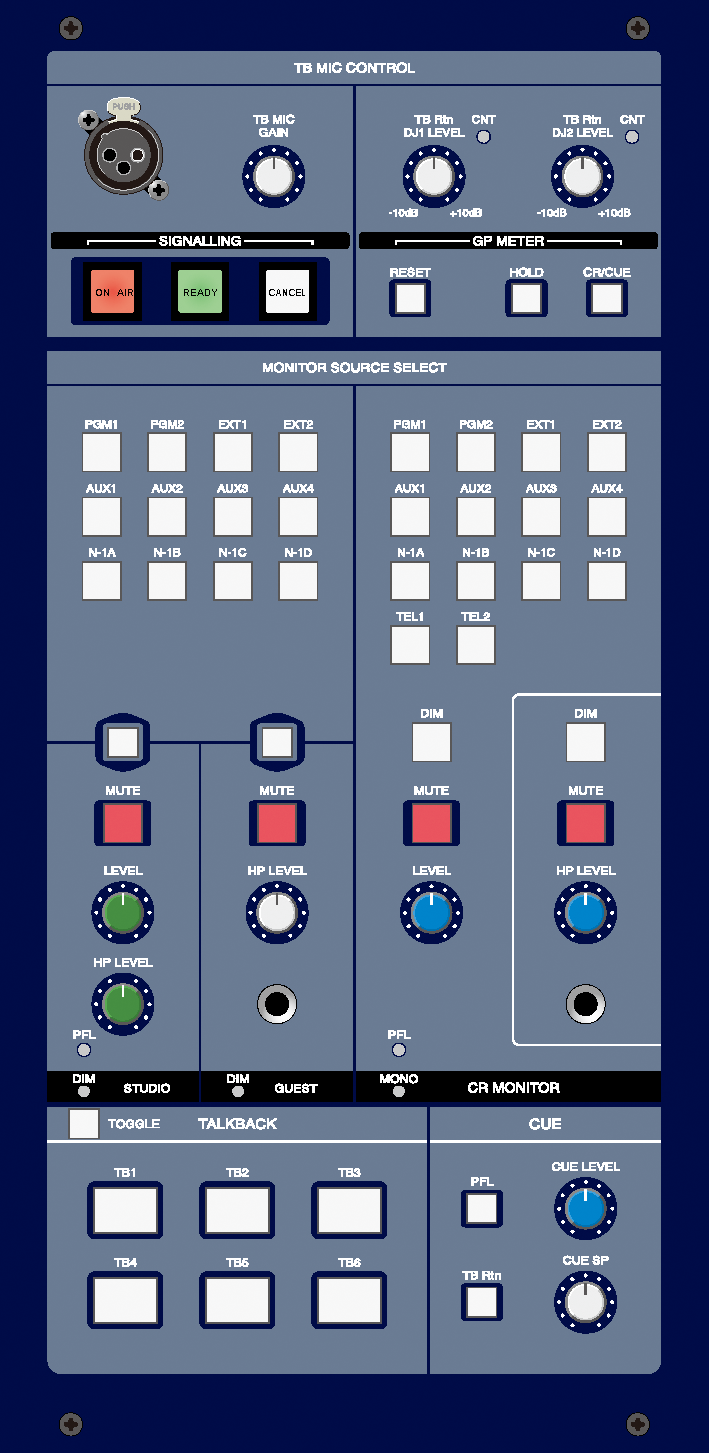

CB-2HS-- Monitor Unit
Used for monitoring operation for control room, studio, and guest, and talkback communication.

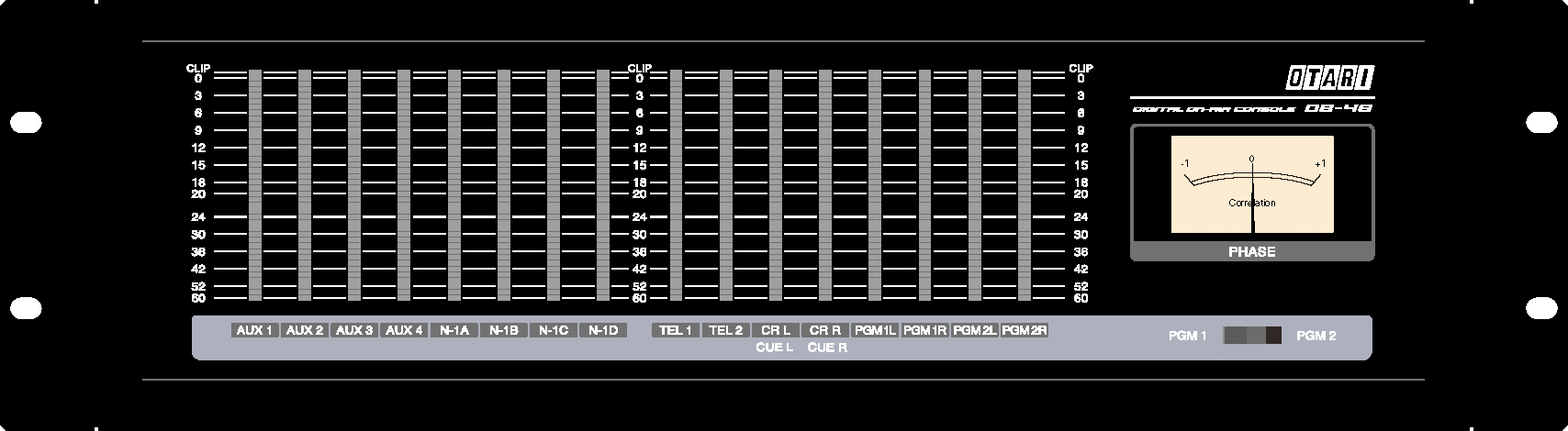

CB-7AD-- Meter Unit
This unit contains level meters for each bus, CR path, and CUE path. The level meter operates in Peak or VU mode. The unit also has a correlation meter for the PGM bus. An output terminal for analog VU meters is provided on the rear panel.
