LWB-16M/64 Optical Wiring System
1 | 2 | 3 | 4 | 5 | 6
LwcV2 - Screens 2: Appearance Tab, I/O Module Tab, Box Tab

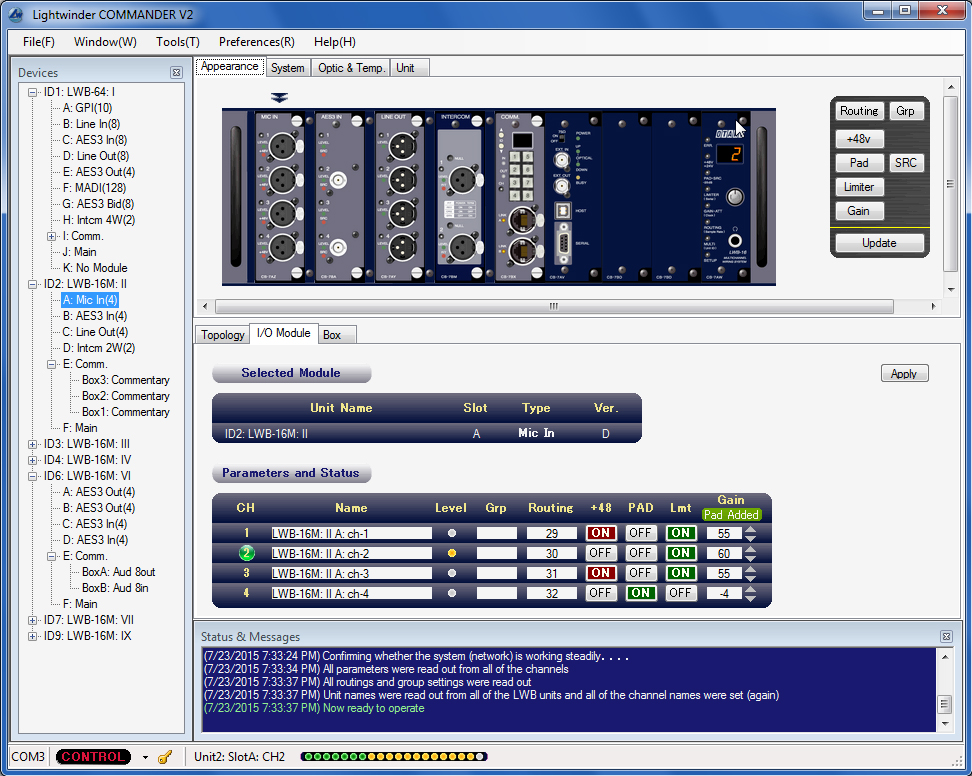

Clicking the desired unit in the Device window or doubleclicking the desure unit name in the Topology tab, then the selected unit is shown in the Appearance tab.

In the I/O Module tab, you can see and adjust each channel parameter for the selected I/O module on the the selected LWB unit.
In the Box tab, you can see and adjust each channel parameter for the selected commentary box, remote box or audio box.
