LWB-16M/64 Optical Wiring System
1 | 2 | 3 | 4 | 5 | 6
LwcV2 - Screens 6: Routings Window

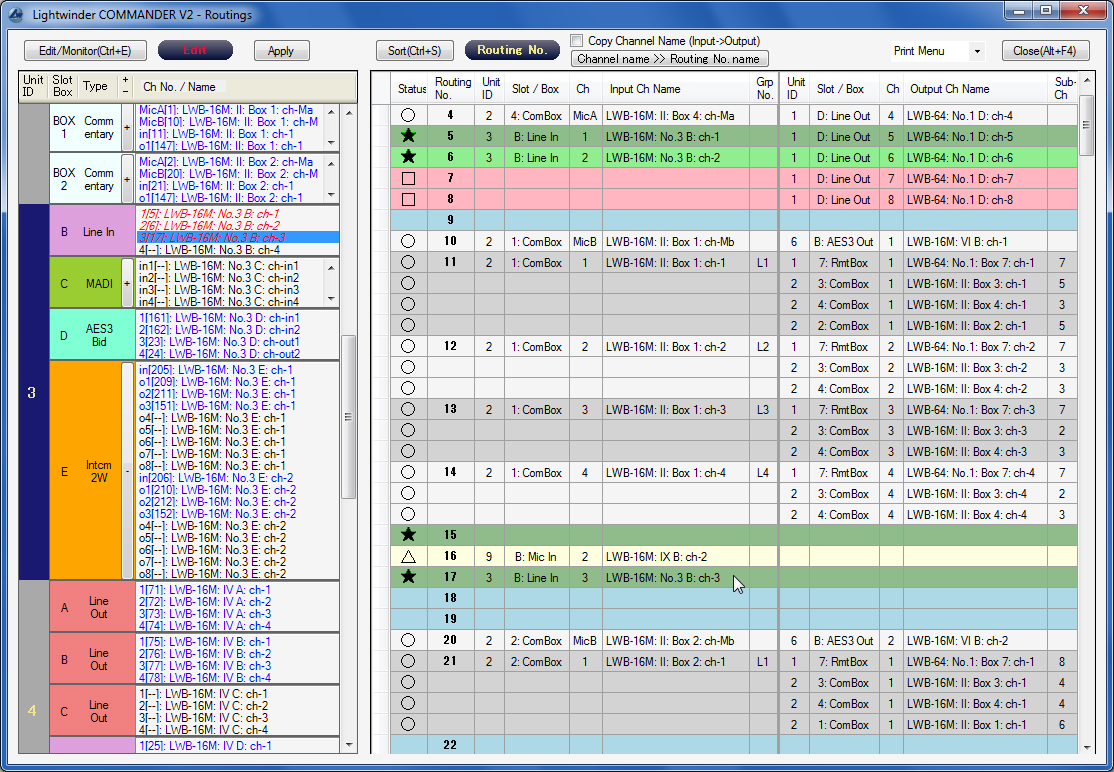

From LwcV2, you can change the routing No. as a channel parameter but there is the Routings window especially for routing procedures. This windows is divided into two: the left half is the Channel List and the right half is the Routing List.To make a route, change the operating mode from Monitor to Edit and then drag & drop the desired channel from the Channel List to the Routing List.
