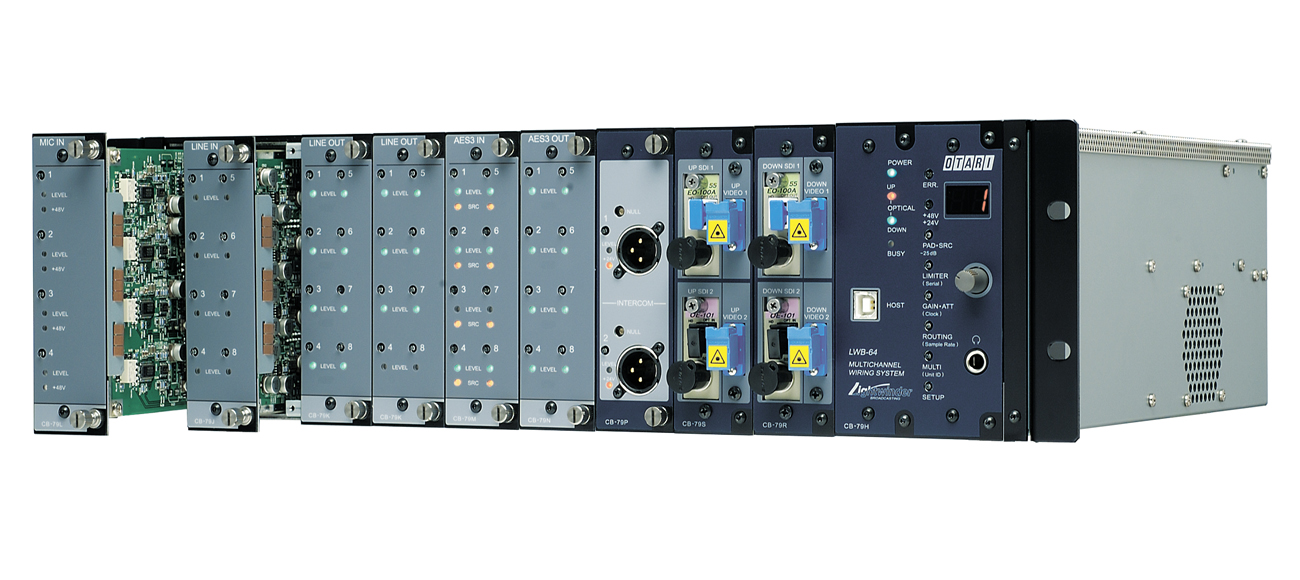

| LWB-16M/64 Optical Wiring System |

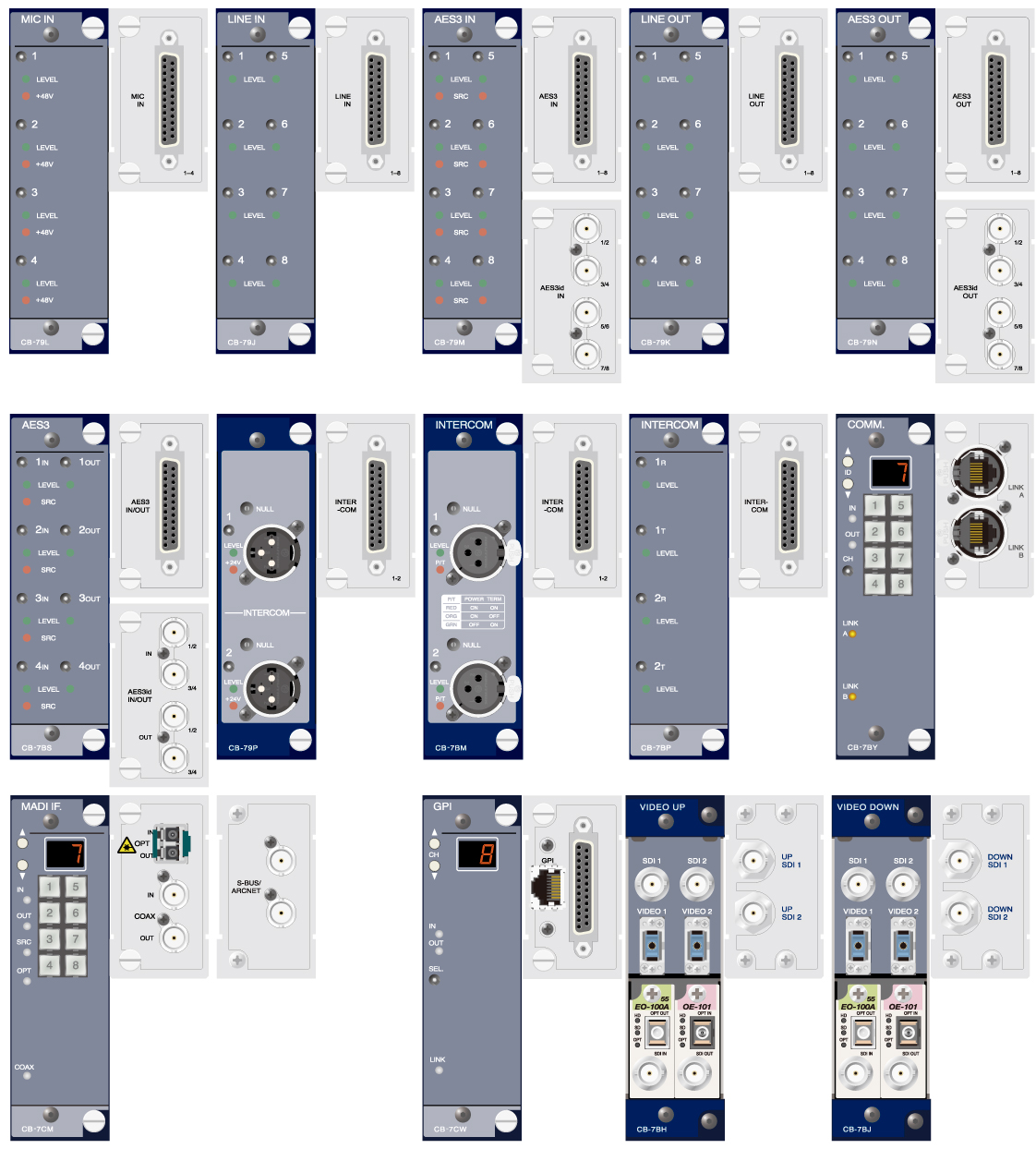

Modules |  | Rear Connection Modules (for LWB-64/ADS-72) Front connection type audio modules (including intercom modules) can be used on the LWB-16M, LWB-64, and ADS-72. Rear connection types are for LWB-64 and ADS-72. | MIC IN | CB-79LA | 4-ch microphone input (1x D-sub 25F) | | LINE IN | CB-79JA | 8-ch line input (1x D-sub 25F) | | AES3 IN | CB-79MB | 8-ch AES3 input (1x D-sub 25F) | | AES3id IN | CB-79MA | 8-ch AES3id input (4x BNC) | | LINE OUT | CB-79KA | 8-ch line output (1x D-sub 25F) | | AES3 OUT | CB-79NB | 8-ch AES3 output (1x D-sub 25F) | | AES3id OUT | CB-79NA | 8-ch AES3id output (4x BNC) | | AES3 IN/OUT | CB-7BSB | 4-ch AES3 input/output (1x D-sub 25F) | | AES3id IN/OUT | CB-7BSA | 4-ch AES3id input/output (4x BNC) | | 2-WIRE INTERCOM | CB-7BMB | 2-wire intercom,
single-/dual-channel support (1x D-sub 25F) | | 2-WIRE INTERCOM | CB-79PA | 2-wire intercom,
single-channel support only (1x D-sub 25F) | | 4-WIRE INTERCOM | CB-7BPA | 4-wire intercom (1x D-sub 25F) | | COMM. | CB-7BYA | Commentary & communication (2x EtherCon®) | | MADI IF. | CB-7CMA | MADI interface [multi mode] (2x OPT/BNC) | | MADI IF. | CB-7CMB | MADI interface [single mode] (2x OPT/BNC) | | SW REMOTE/ARCNET* | CB-7BL | Switcher control signal/ARCNET signal (2x BNC) | | GPI | CB-7CW | GPIO (D-sub 25 + RJ45) | | VIDEO UP* | CB-7BHA | Video signal (BNC) | | VIDEO DOWN* | CB-7BJA | Video signal (BNC) |
*) For LWB-64. Not useable on ADS-72.
|
|
