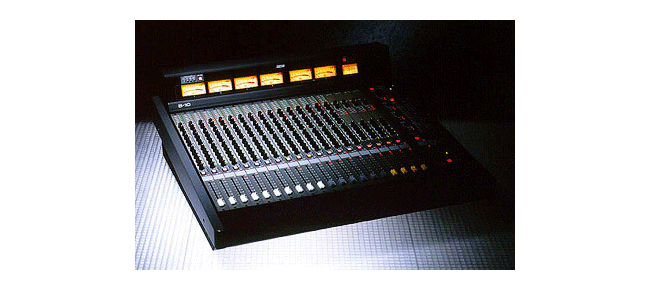

B-10 Analog On-Air Mixing Console
This product has been discontinued.
Features | Specifications
The Otari B-10 Series is a small size mixing console suitable for various applications in broadcast stations and in audio/video post-production studios. The B-10 is supplied in three configurations based on its frame size: B-10-1 (14-module capacity), B-10-24 (24-module capacity) and B-10-34 (34-module capacity).
The B-10 has six types of modules: Mono Input, Stereo Input, Stereo Master, Group, Monitor, and Talkback/Oscillator modules. Since each module is designed to occupy only a width of 30 mm, the B-10 series mixing console is compact and every control is within easy reach.
Transformerless Stereo and Mono Program (PGM) Outputs are provided. The same signal as for the Stereo Program Output is supplied from the REC 1 and REC 2 Outputs. These outputs can be used for distribution to recording machines, and as additional program outputs.
