LWB-16M/64 Optical Wiring System
1 | 2 | 3 | 4 | 5
Application Example 3 - Broadcasting of Motor Sports Event
LWBApplications3
Click image to enlarge.

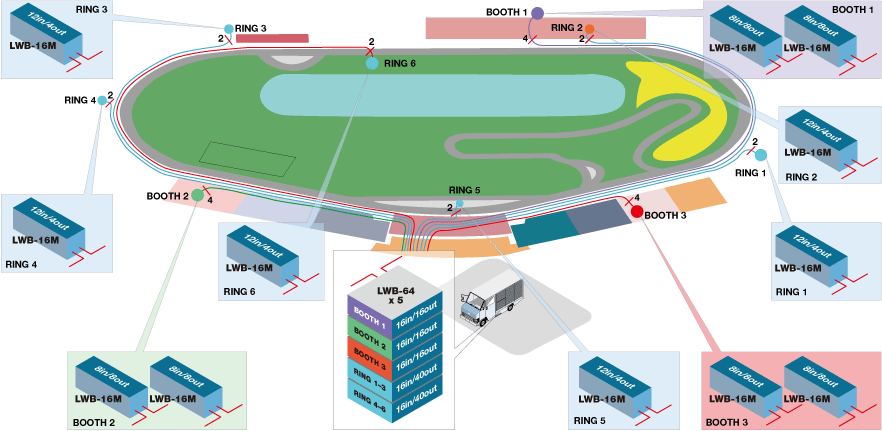

  • This is an example of broadcasting a motor sports event.
  • This is a rather large system consisting of 12 LWB-16Ms and 5 LWB-64s. Along the circuit there are six sound pickup points RING 1-6 and in the stands and near the pits there are BOOTH 1-3 for commentators and announcers.
  • Unlike other examples, this system is divided into five independent signal loops (RING 1-3, RING 4-6, BOOTH 1, BOOTH 2, BOOTH 3).
